Overview

• Brand : TBVECHI
• Model Name : Roll-up Motor
• Speed : 2.8 RPM
• Voltage : 24 Volts
• Horsepower : 100 Watts

About this item

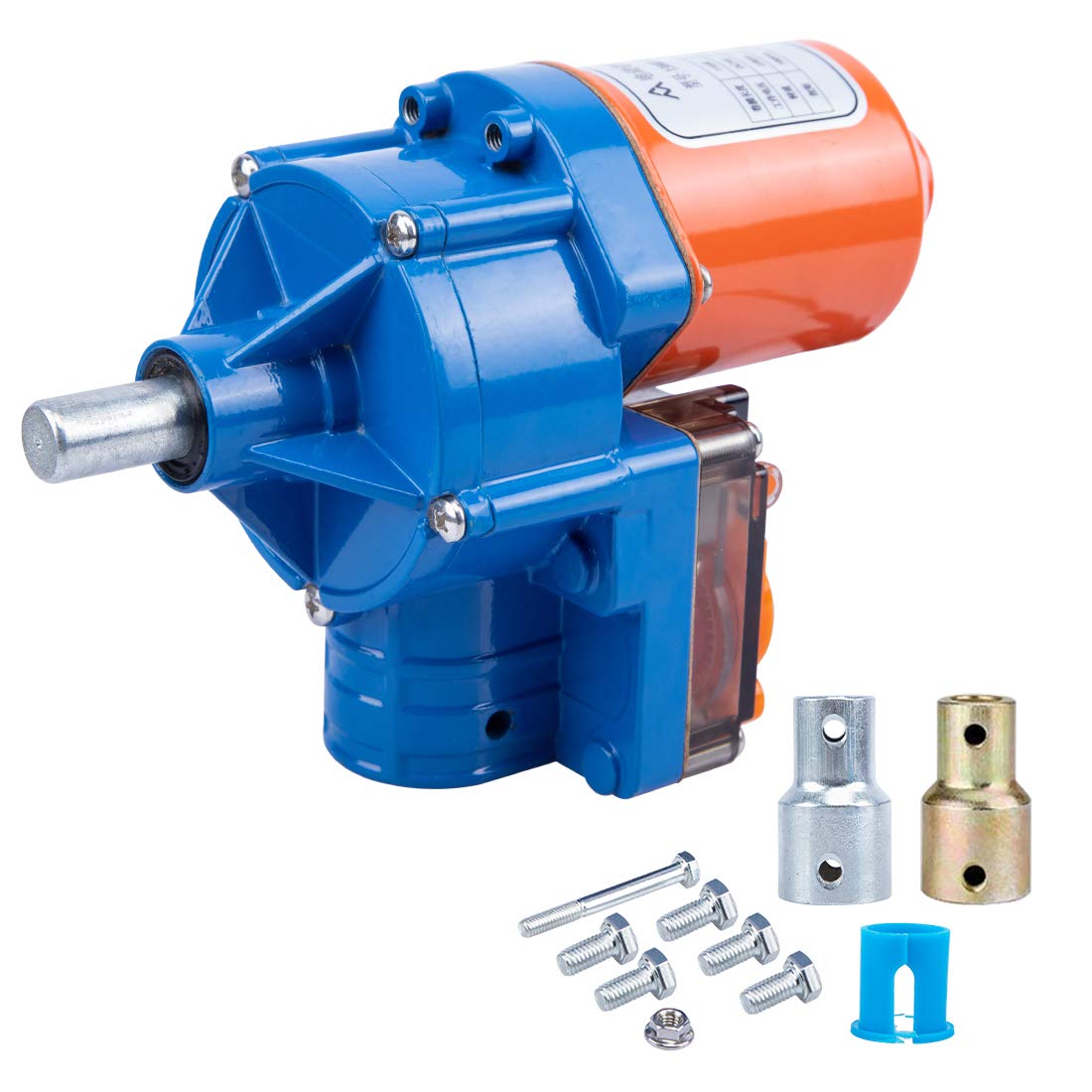

• Greenhouse Roll-up Motor: 24V 100W Electric Greenhouse Frame Shed Roll-up Motor Automatic Venting Solution.The gear is the most critical part of the film winder. Our film winder uses high-quality gears with special heat treatment, which has high stability and greatly improves the operating efficiency, fit for most of your film ventilation roll up work.
• Motor Description: Greenhouse electric film roller, adopts pure copper motor and aluminum alloy body, not easy to corrode, rust, and has a long service life. Excellent reliabilty Ideal for greenhouse ventilation, light deprivation and blackout systems.

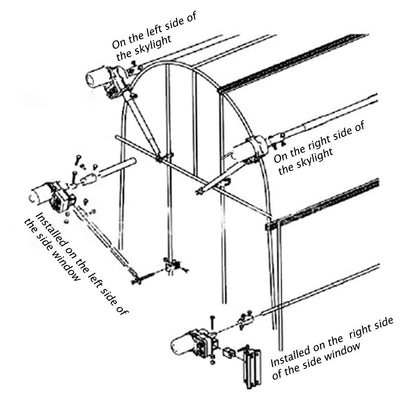

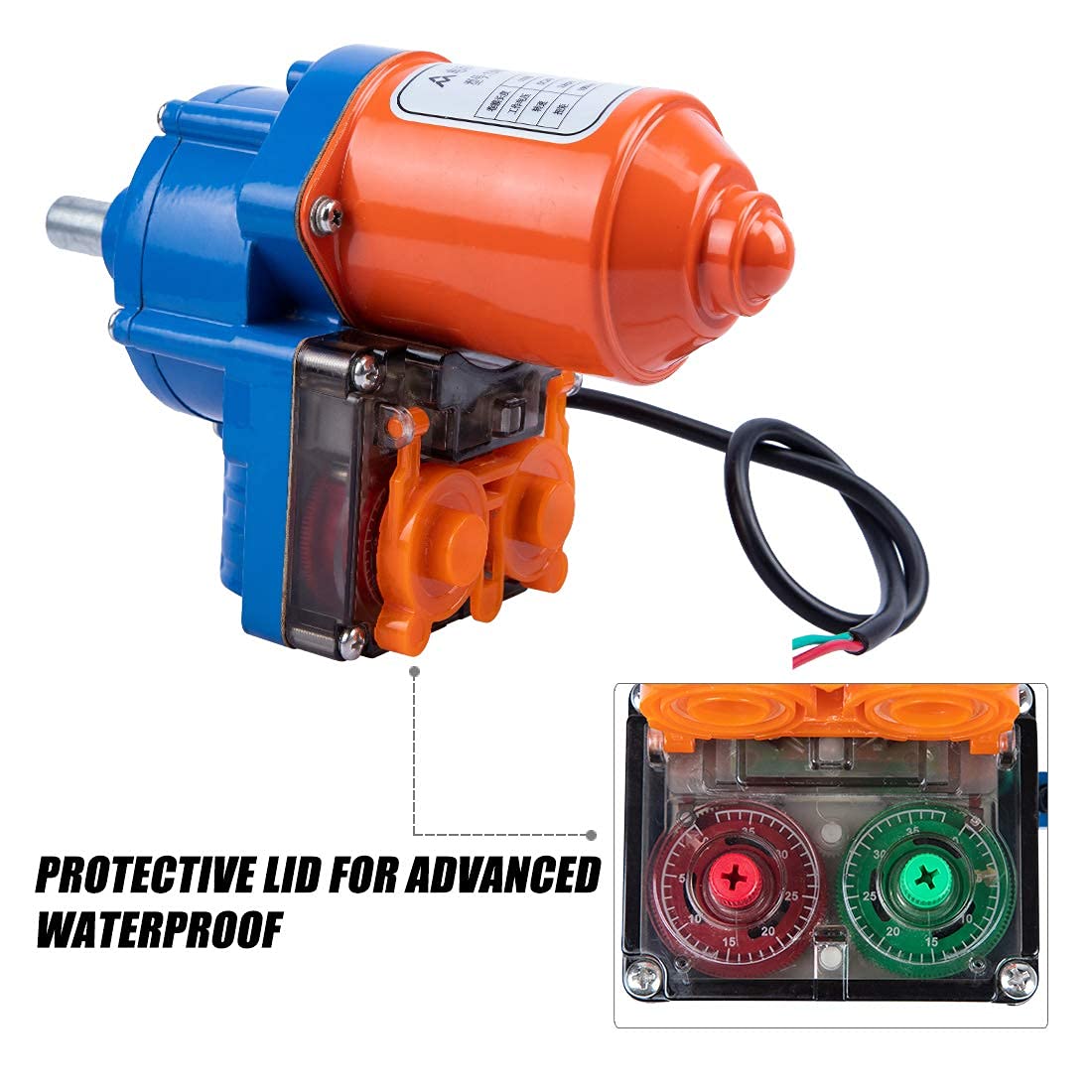

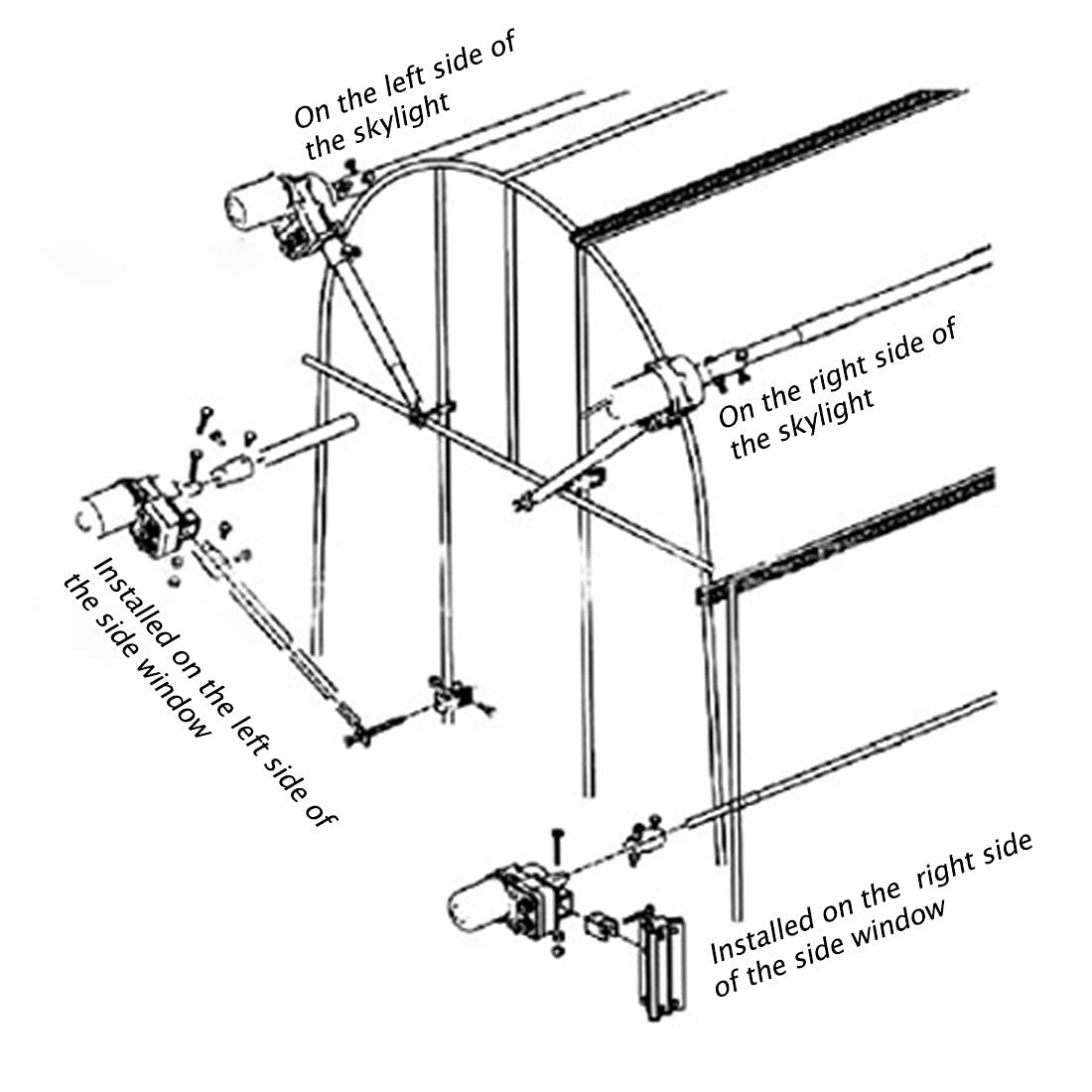

• Features: Greenhouse curtain motor Roll-up Unit for up to 100 feet long. Setting the limit switches on hoophouse roll up ventilation motors, electricl roll up winch. Low noise, easy to install, very labor-saving operation, improve work efficiency greatly.
• Motor Useful: Electric film roll up motor is widely used in greenhouse, such as solar greenhouse, vegetable greenhouse, breeding greenhouses, flower greenhouses, connecting film greenhouses, fruit greenhouses, cultivation greenhouse, multi-transmembrane greenhouse and other assembled greenhouse.

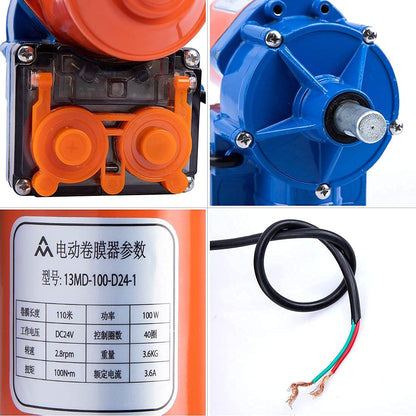

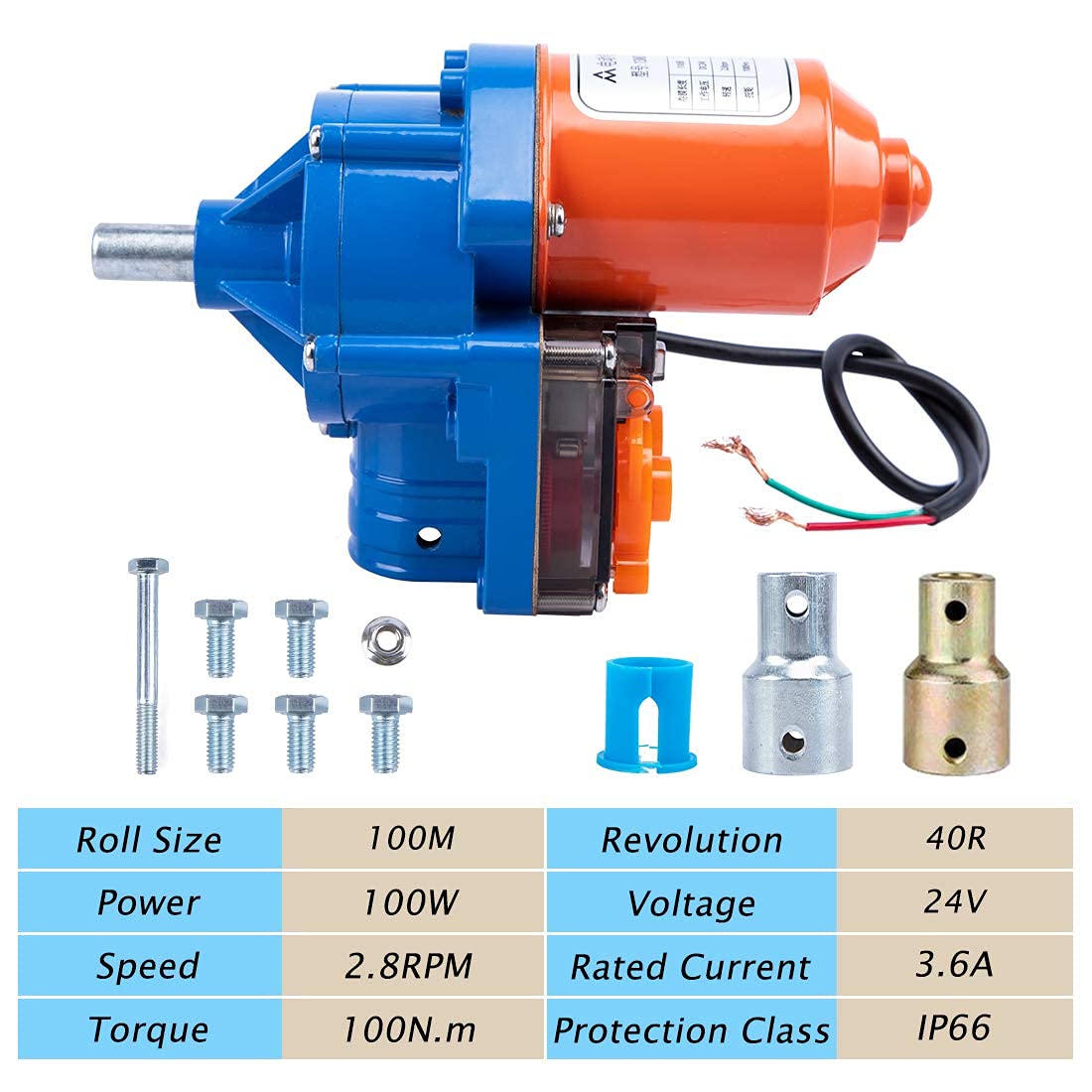

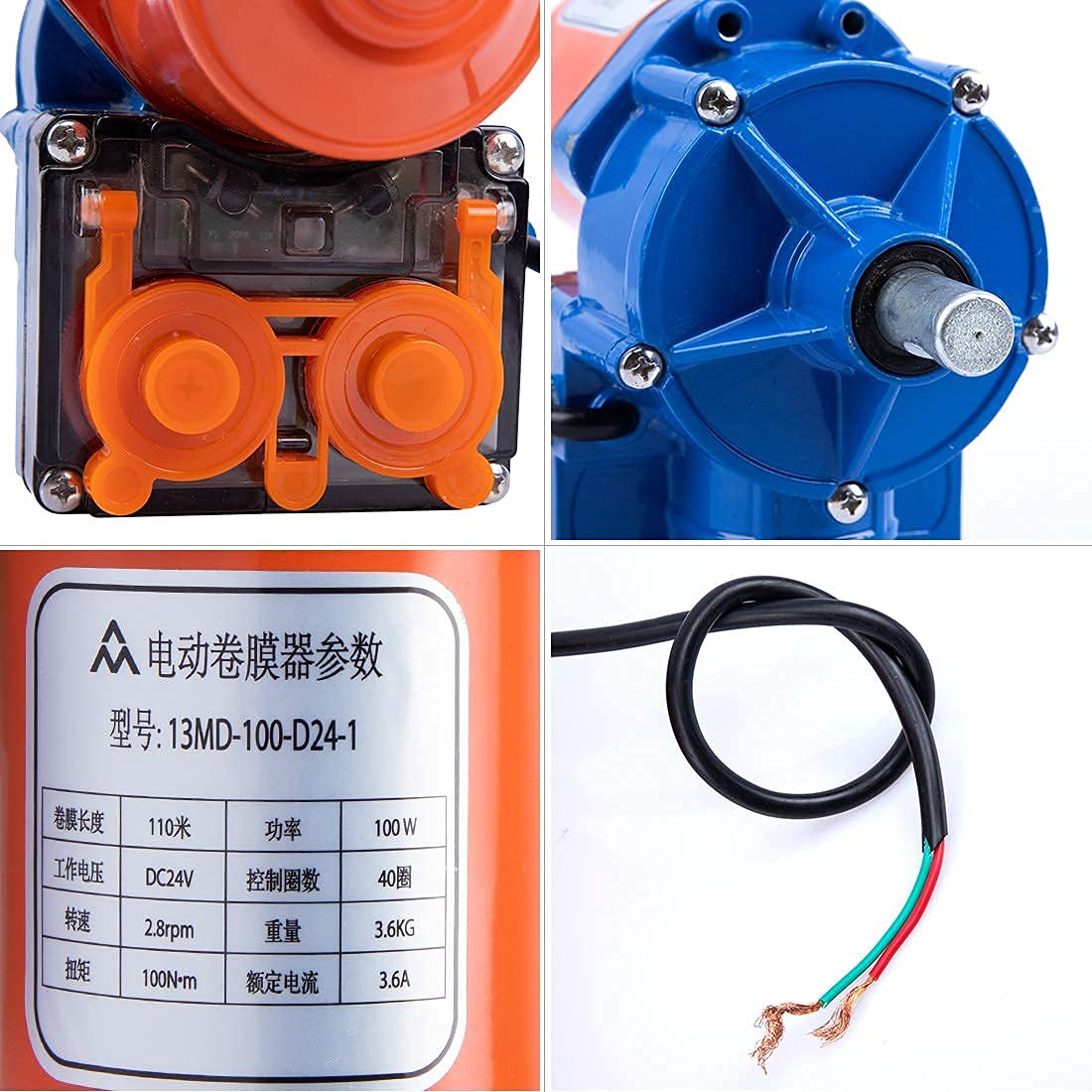

• Specification: Roll Size: 100m; Revolution: 40R; Power: 100W; Voltage: 24V; Speed: 2.8RPM; Rated Current: 3.6A; Torque: 100N.m; Protection Class: IP66; Max Roll Tube Length: 100 Feet Long; Climb 10ft Height When OD 22mm oll Bar; Climb 12.9ft Height When OD 25mm Roll Bar; Max Lift 1320lbs (600kg).
